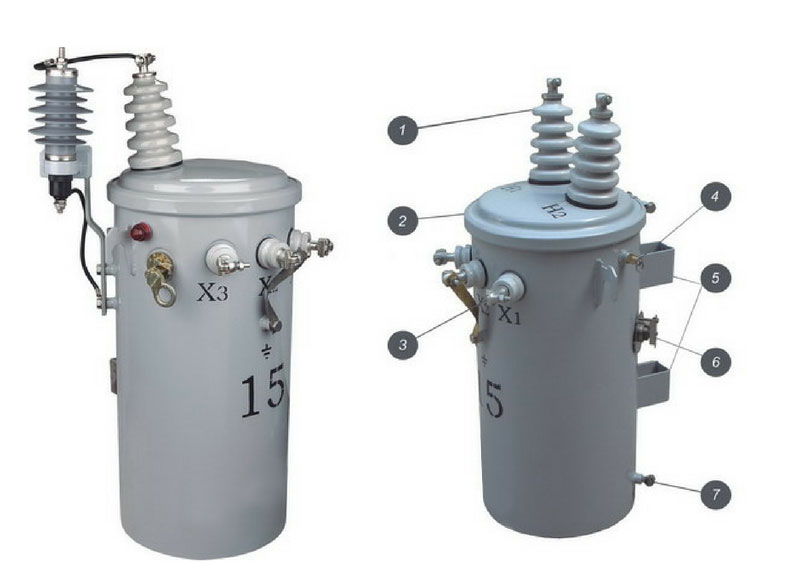

Distribution Transformer - Single Phase
Suman Single Phase Distribution Transformers are designed to effectively improve the quality and reliability of the electrical distribution system. Suman specializes in the manufacture of Pole type Silicon Steel and Amorphous Metal Transformers.
Technical Specification
| Applicable Standards | IS, IEC, ANSI, JIS, etc. |
| Cooling | ONAN, OA |
| Insulating Fluid | Mineral Oil to specification |
| Frequency | 50 Hz, 60 Hz |
| Polarity | As specified |
| Primary voltage | 11 KV Class |
| Secondary Voltage | 120, 120/240, 210-105, 250, 240/480 V |
| Winding material | Copper / Aluminium |
| Taping range | ± 5% in steps of 2.5% (Other tapings as required) |
| Impedance | In line with applicable standards. |
