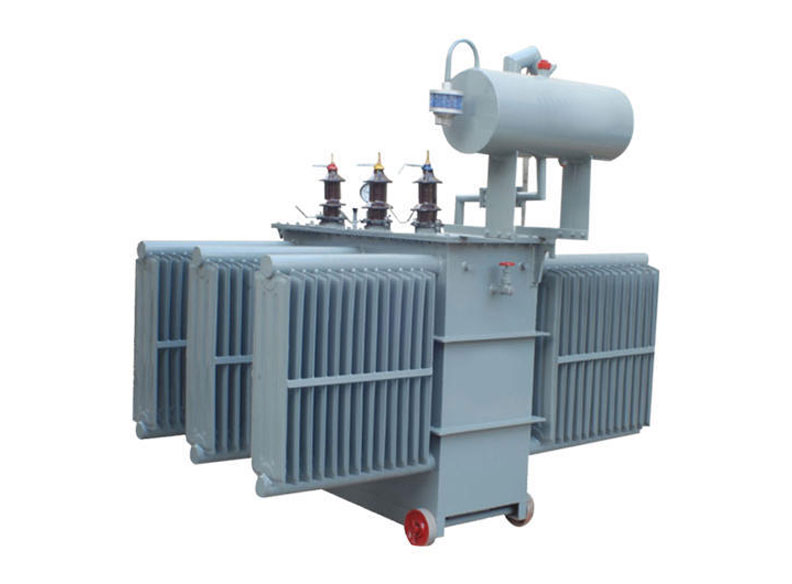

Distribution Transformer - Three Phase
Suman's Three Phase Distribution Transformers utilize the most advanced and versatile design, delivering excellent performance characteristics.
Suman also offers hermetically sealed type transformers along with other conventional types of Transformers.
Technical Specification
| Applicable Standards | IS, IEC, ANSI, JIS, BS etc. |
| Cooling | ONAN, OA |
| Insulating Fluid | Mineral Oil to specification |
| Frequency | 50 Hz, 60 Hz |
| Polarity | As specified |
| Primary voltage | Upto 33 kV |
| Secondary Voltage | 415, 433 V (Other Voltages as required) |
| Winding material | Copper / Aluminium |
| Taping range | ± 5% in steps of 2.5% (Other tapings as required) |
| Impedance | In line with applicable standards. |
